Products
Cymatix offers a wide variety of hardware solutions to meet your automation needs. From the control panel to the mechanical tooling and everywhere between our team of industry experts can help you to find the right product for you.
Drives + Controls
Servo/Stepper, PLC & VFD
Controllers are specifically designed pieces of hardware that command and control motion. They act as the brain of the system converting desired inputs or commands (i.e., position, velocity, acceleration and time) into electrical signals that drive the motor. Control architectures include both open and closed loop.

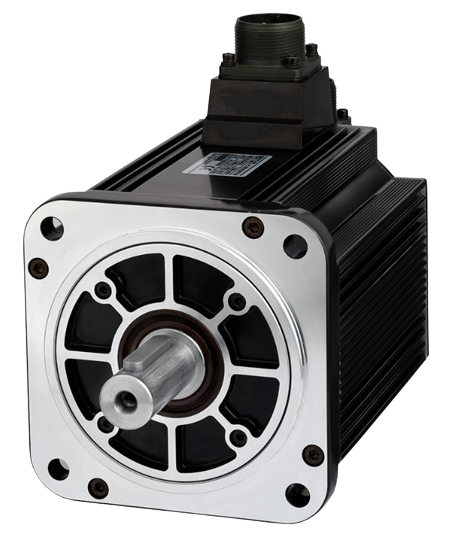

Motors
Linear, Rotary & Direct Drive Motors
Motors act as the backbone of any system converting electrical energy into mechanical energy. Motors can be driven by both AC and DC power and operate in linear and rotary motion. Every motor has its own unique properties of speed, inertia and torque which required having a properly sized and selected motor to ensure optimal performance and control of the load being moved or positioned.
Encoders
Linear & Rotary Encoders
Encoders are feedback devices that are used to measure and monitor position to determine velocity and direction. This information allows the user to know where an object is and where it is going. Encoder technologies include magnetic, mechanical, resistive and optical. Output data can be both incremental or absolute.

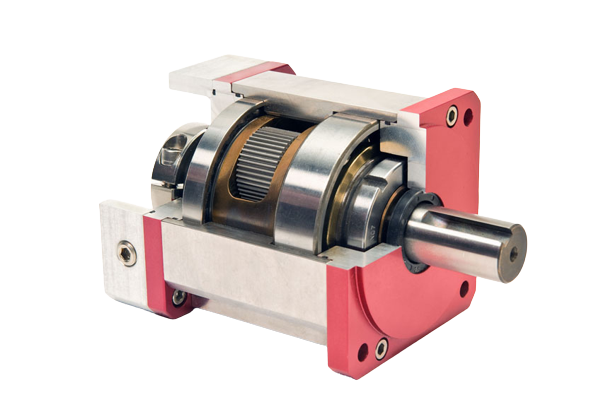

Gearboxes
Planetary & Harmonics Gearboxes
Gearboxes are mechanical assemblies that increase the torque of a motor by reducing its speed and in doing so, combating inertia. In a well-designed system, the inertia of the load being driven should be no more than 10 times that of the motor’s rotor; when a gearbox is implemented the inertia of the load is reduced by the square of the gearbox ratio. If the inertia mismatch (load to rotor) exceeds 10:1, the load is hard to control and positioning becomes challenging.

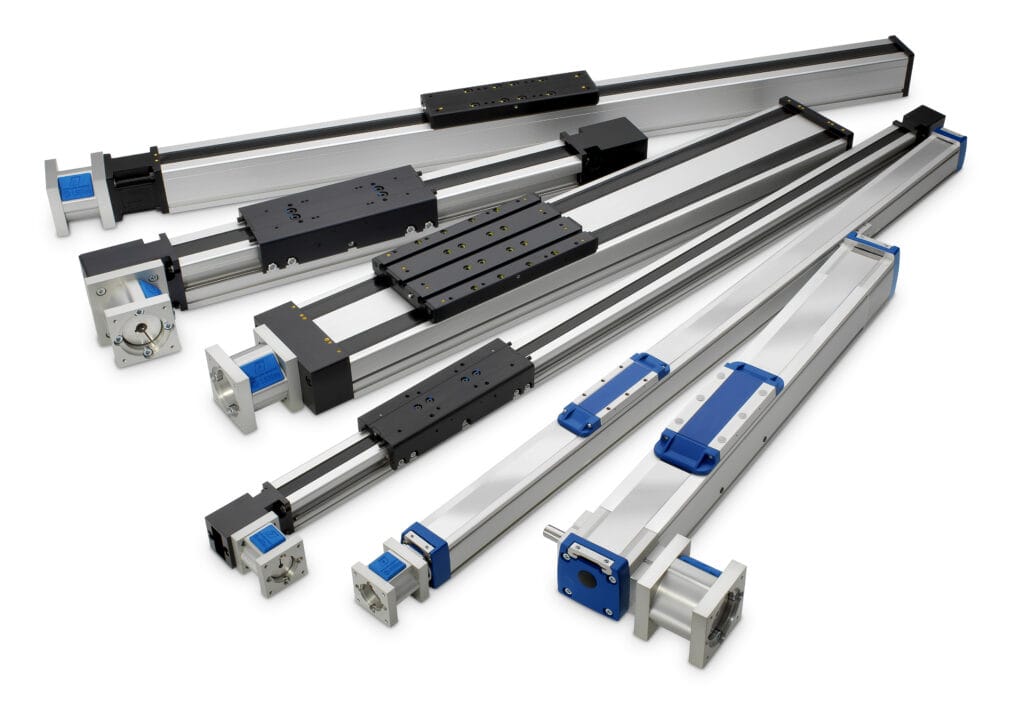

Stages & Actuators
Linear & Rotary Actuators
Stages and actuators are sub-assemblies that incorporate the drivetrain and bearing structure for use in linear and rotary applications. Having different bearing and drivetrain combinations allow the user to achieve different strokes, speeds and positionality. Drivetrain options include ball screw, leadscrew, belt and linear motor. Bearing options include profile rail, round rail, cross roller, wheel, v-guide, and planar/friction based.
Machine Framing
Aluminum T-Slot Extrusion
Modular T-Slot aluminum extrusion creates structures that are easy to configure and assemble. The profile of the extrusion bars allows for t-nuts to drop in and be positioned anywhere along the length of the channel for endless design configurations. Aluminum is lightweight with exceptional strength properties that makes it desirable in just about any application.

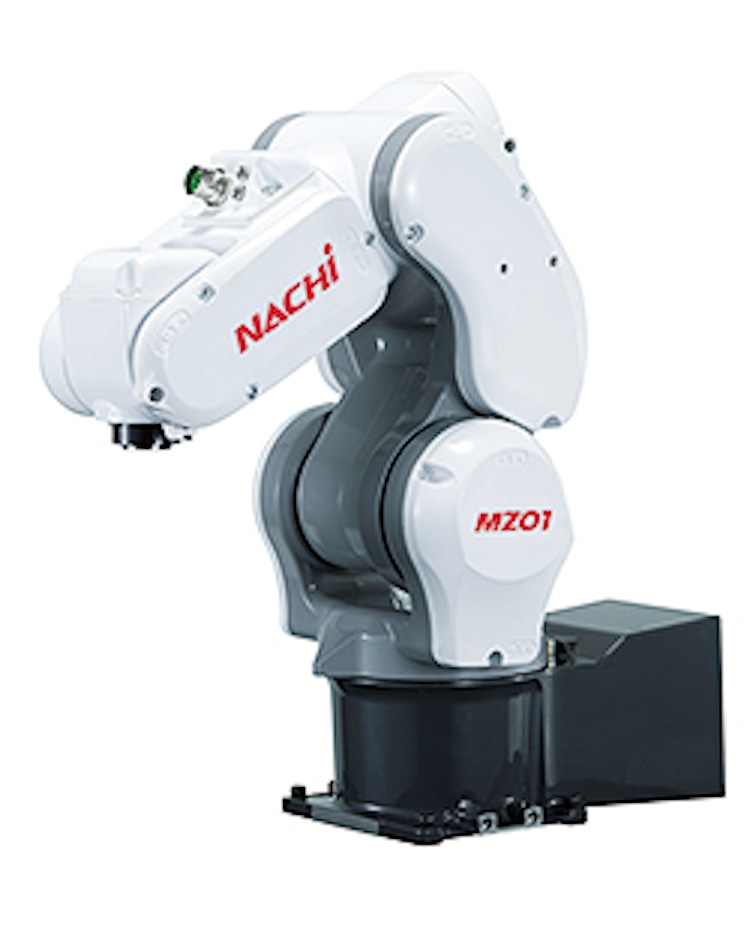

Robotic Systems
6-Axis, SCARA & Collaborative Robots
Six-Axis, Collaborative and SCARA robots offer turnkey solutions for use in industrial automation applications. These industrial robots allow for multiple axes of motion in a compact package. The robots are adaptable to match their environment and are scalable to meet application demand.
Sensors
Laser Distance & Vision Sensors
When it comes to automation and quality control, you control system requires inputs to know where certain information about a part; our lineup of industrial sensors serve just this purpose. Laser displacement sensors allow you to know height, width, distance and count. Vision sensors allow for pattern recognition as well as OCR (optical character recognition) and non-contact thermometers allow you to measure infrared light emitted.
